Description
Product Overview

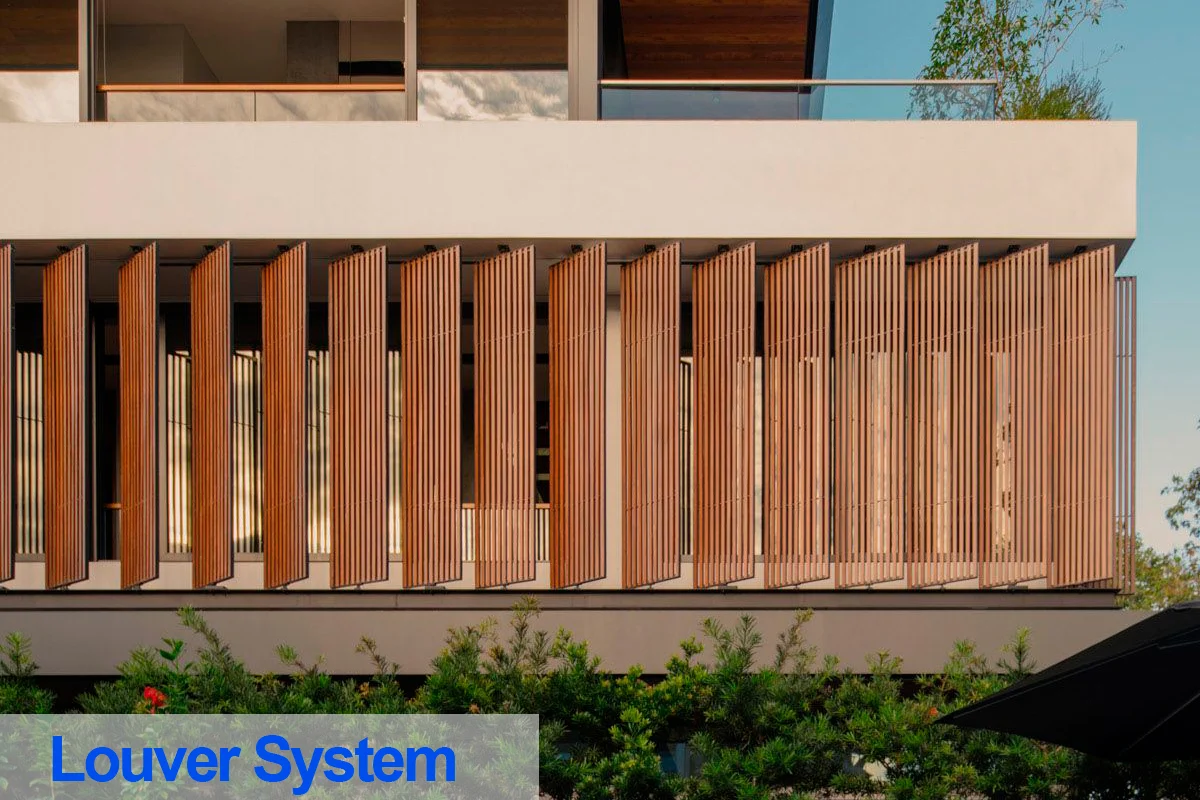

Aluminum Louver Sunshade System LV80 for Building Facades is manufactured by FstopMetal (拓谱) in Foshan, China. Panels are fabricated from aluminium alloy and finished to project specification for architectural facade, ceiling and screening applications.
Key Specifications
| 型号 | FST-LV80 |
|---|---|
| 材质 | 铝合金 6061-T6 |
| 单位 | sqm |
| 重量 | 6.2 |
| 供应能力 | 8000 |
| 品牌 | FstopMetal |
| 叶片宽度 | 80mm |
| 厚度 | 1.5mm |
| 角度 | 0-90度可调 |
| 跨度 | 最大 3000mm |
Applications
- Commercial facade and curtain wall systems
- Interior and exterior ceiling systems
- Screening, fencing and sun-shading
Manufacturing & Surface Treatment
CNC cutting, bending, welding and punching are performed in-house. Surface finishes are applied according to the specification listed above.
Packaging & Delivery
Protective film with carton or wooden crate packing; OEM/ODM supported and samples available on request.
Frequently Asked Questions
Can dimensions be customized?
Yes. Custom sizes and thicknesses are supported within the maximum limits listed above.
Do you provide samples?
Yes, samples are available on request.
What is the lead time?
Lead time depends on order quantity and finish; please contact sales for the current schedule.
