What Are Aluminum Honeycomb Panels?
Aluminum honeycomb panels are composite sandwich panels consisting of two thin aluminum face sheets bonded to a hexagonal aluminum honeycomb core. The result is an ultra-lightweight, rigid panel that delivers exceptional flatness and structural stability. For shopping mall facades, ceilings, and interior partitions, honeycomb panels offer a high-strength-to-weight ratio that conventional solid aluminum sheets cannot match at the same gauge. FstopMetal manufactures these panels as part of its custom aluminum cladding and curtain wall solutions, operating since 2003 from Foshan, China, and exporting to 36+ countries.
Construction and Core Architecture
The honeycomb core is typically 10–50 mm thick, depending on the required rigidity and span. Face sheet thickness commonly ranges from 0.5 mm to 1.0 mm per side. The adhesive bond between core and faces is critical—proper bonding ensures the panel acts as a unified structural element rather than two independent sheets. FstopMetal’s custom manufacturing process allows architects to specify core depth, face alloy, and finish to match each project’s performance requirements.
Why Honeycomb Panels Outperform Solid Sheets
At equivalent stiffness, honeycomb panels can be up to 60% lighter than solid aluminum of the same thickness. This weight reduction translates directly into smaller sub-frameworks, lighter support structures, and lower installation labor. For large-span mall facades and ceiling spans, the weight advantage is often the deciding factor in structural design.
Why Aluminum Honeycomb Panels Suit Shopping Mall Applications
Facade and Cladding Performance

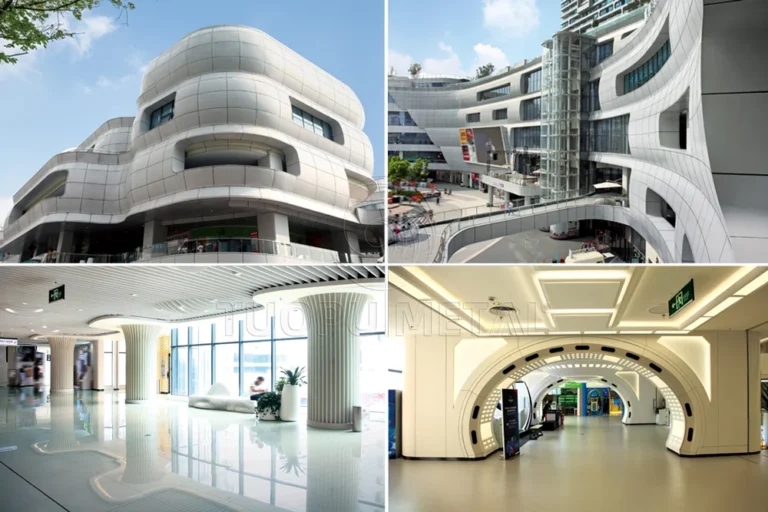

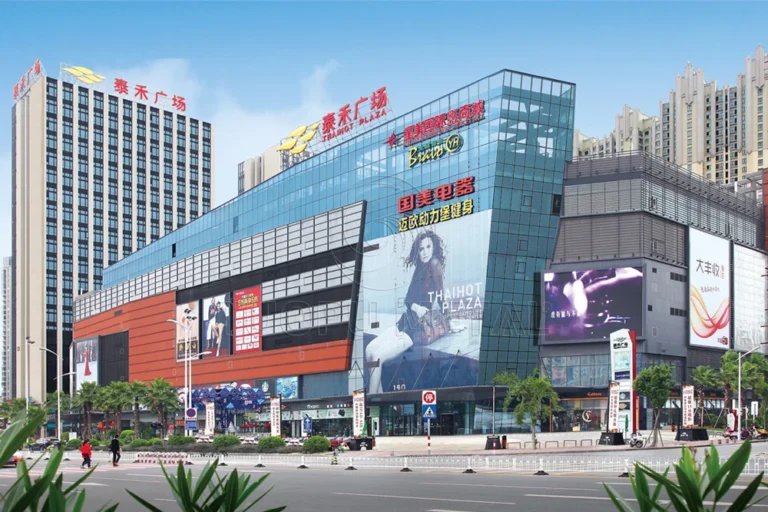

Shopping mall facades demand panels that resist wind load, thermal movement, and UV exposure while maintaining a clean aesthetic. Aluminum honeycomb panels meet these requirements through their inherent rigidity and the durability of applied surface treatments. The panels are compatible with both ventilated and non-ventilated curtain wall systems, giving architects flexibility in detailing.
Acoustic and Ceiling Applications
Interior ceiling applications in malls benefit from honeycomb panels’ ability to integrate acoustic backing. When paired with perforated face sheets and sound-absorbing infill, these panels can achieve significant noise reduction in high-traffic commercial spaces. The open-cell honeycomb structure also allows for seamless integration of lighting, HVAC diffusers, and sprinkler heads without compromising panel integrity.
Sustainability and Recyclability
Aluminum is 100% recyclable without loss of material properties, and honeycomb panels maximize material efficiency through their core geometry. FstopMetal offers panels with high recycled aluminum content and can provide Environmental Product Declarations (EPD) for projects requiring green building certification. The long service life and low maintenance profile further reduce the environmental footprint over the building’s lifecycle.
How to Specify Aluminum Honeycomb Panels for Mall Projects
Alloy and Temper Selection
The standard alloy for architectural honeycomb panels is 6063, available in T5 or T6 temper. T6 temper provides higher yield strength and is preferred for large-span facade applications where deflection control is critical. T5 temper is suitable for interior ceiling and partition applications where lower load demands apply. The alloy and temper choice directly affects panel rigidity, surface finish quality, and fabricability.
Surface Treatment Comparison
| Surface Treatment | Typical Thickness | Best Application | Color Retention |
|---|---|---|---|
| Powder Coating | 60–80 µm | General facade and interior | Excellent |
| PVDF (Kynar 500) | 25–30 µm | High-exposure facades | Superior |
| Anodizing | 15–25 µm | Modern metallic finishes | Very Good |
| Wood Grain Transfer | Standard | Decorative interior features | Good |
Fire Compliance Considerations
Fire rating requirements vary by jurisdiction and project type. Honeycomb panel fire performance must be verified by a third-party report specific to the panel construction, adhesive system, and core configuration. Architects should request test documentation from the manufacturer and confirm compliance with local building codes before specification. FstopMetal panels are CE and SGS certified, and fire compliance is addressed on a project-by-project basis with supporting test reports.
Panel Thickness and Span Tables
Specification of panel thickness must account for the support grid spacing, wind load, and panel dimensions. Typical honeycomb panel thicknesses for facade use range from 20 mm to 50 mm, while interior ceiling panels commonly use 10 mm to 25 mm thickness. The manufacturer can provide span tables and deflection calculations based on the specific project parameters.
Installation, Maintenance, and Procurement
Installation Best Practices
Honeycomb panels require careful handling to avoid core deformation or face sheet damage. Panels should be lifted using vacuum lifters or edge grips designed for composite panels. During installation, expansion joints must be incorporated to accommodate thermal movement, and sealant selection should be compatible with the panel surface treatment. FstopMetal provides technical support and installation guidance for international projects.
Maintenance Requirements
Aluminum honeycomb panels require minimal maintenance. Routine cleaning with mild detergent and water is sufficient for most applications. PVDF-finished panels in high-exposure locations may benefit from periodic inspection of sealants and joint conditions. The panels do not require repainting or protective coatings beyond the initial finish application.
Procurement and Customization
FstopMetal specializes in custom manufacturing, meaning panel dimensions, shapes, and finishes can be tailored to project requirements. Architects and contractors should engage with the supplier early in the design phase to optimize panel sizing, minimize waste, and align surface treatment selection with the project’s aesthetic and performance goals. Contact TOP METAL & TUORUNDA, Jimmy, via WhatsApp at +86-139-2919-8578 or email sales2@trdoutdoor.com for project-specific consultation.
Frequently Asked Questions
What thickness range is typical for aluminum honeycomb panels in shopping mall facades?
Facade honeycomb panels typically range from 20 mm to 50 mm in thickness, selected based on span requirements, wind load calculations, and the specific panel dimensions. Interior ceiling applications generally use thinner panels in the 10 mm to 25 mm range. The optimal thickness depends on the support grid spacing and structural performance criteria of the project.
Can honeycomb panels be used for both exterior facades and interior ceilings?
Yes. Honeycomb panels are versatile enough for both exterior cladding and interior ceiling applications. Exterior use requires a durable surface treatment such as PVDF or powder coating, while interior applications may use any of the available finishes. The same panel construction can be specified across both applications, simplifying procurement and ensuring visual consistency.
How do I verify fire compliance for honeycomb panels in a mall project?
Fire rating requirements vary by jurisdiction and must be verified through third-party test reports specific to the panel assembly. Request the manufacturer’s test documentation covering the exact core, face sheet, and adhesive combination specified for your project. Confirm that the test results meet the requirements of the applicable building code before finalizing the specification.
What surface treatments are available for aluminum honeycomb panels?
The available surface treatments include powder coating (60–80 µm), PVDF/Kynar 500 (25–30 µm), anodizing (15–25 µm), and wood grain transfer. Each treatment offers different aesthetic and performance characteristics. Powder coating provides the widest color range, PVDF offers the highest weather resistance for exterior facades, anodizing delivers a metallic finish, and wood grain transfer provides decorative organic appearances.
Does FstopMetal offer custom sizing and shapes for honeycomb panels?
Yes. Custom manufacturing is a core capability. FstopMetal can produce honeycomb panels in custom dimensions, curved profiles, and specialized shapes to match project requirements. Early engagement during the design phase allows for optimization of panel sizes, reduction of material waste, and alignment of technical specifications with the architect’s vision. Contact the sales team for project-specific consultation.
